Sail Solar 16kwh wheel lithium battery is low voltage battery module developed for low voltage solar battery energy storage system. Designed mainly for residential energy storage applications, it supports high-precision measurement of multi-cell voltage and temperature. Embedded BMS system effectively monitors phenomena such as over-temperature,over-voltage, and over-current, reducing the risk of battery damage or even fire, ensuringthe safety of life and property.
Marque :
Sail SolarTaper :
Lithium BatteryTension nominale :
51.2VCapacité de la batterie :
16KWHNombre de cycles :
8000Communication :
RS485/CANCouleur et OEM :
White&OEMgarantie :
10 years

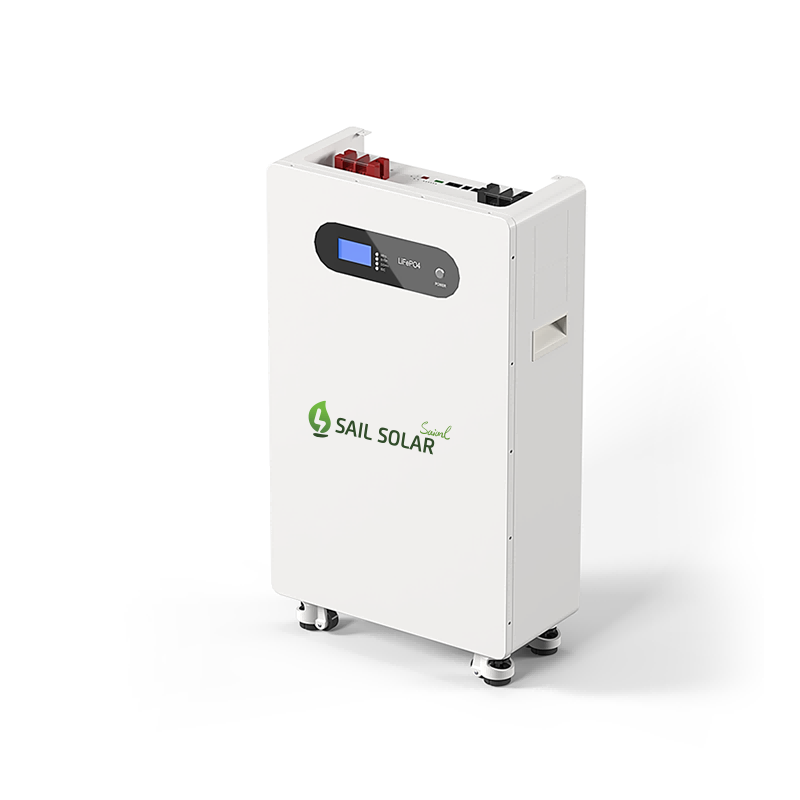

This 16kwh lithium battery module uses high-capacity, high-safety lithium iron phosphate (LiFePO₄) battery cells and features a stacked design to optimize floor space and vertical space utilization. The module is equipped with a high-precision Battery Management System (BMS) that monitors voltage and temperature in real time, enabling cell-level intelligent temperature control and smart balancing, thereby improving system efficiency and extending cycle life. Its cold-rolled sheet metal shell has a shock-resistant structure, meeting household safety and reliability standards. In addition, the module offers high stability and disturbance resistance, ensuring long-term safe and reliable operation of the battery system.
--------------占位---------------

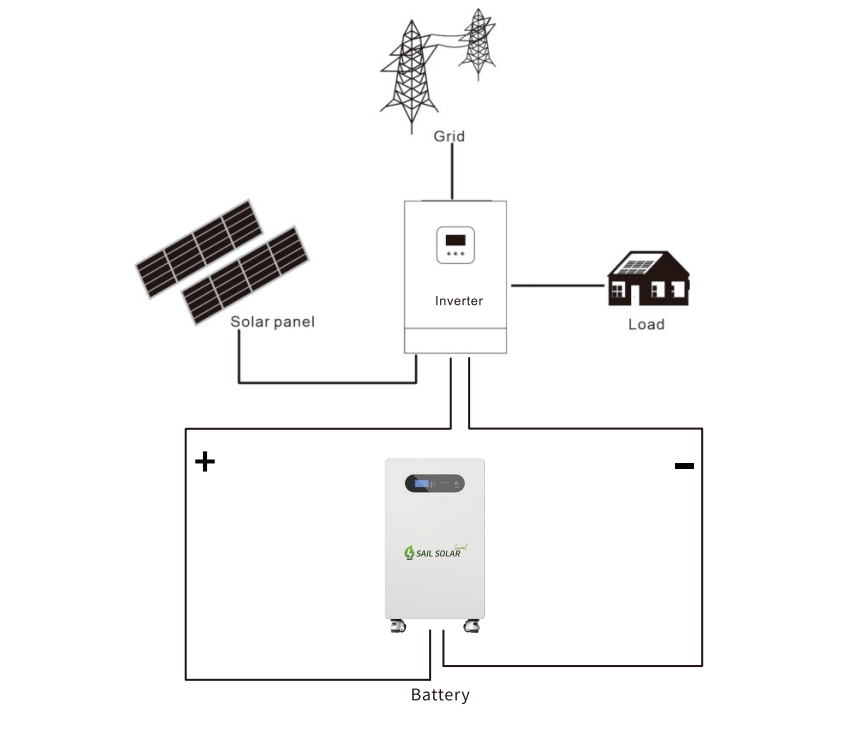

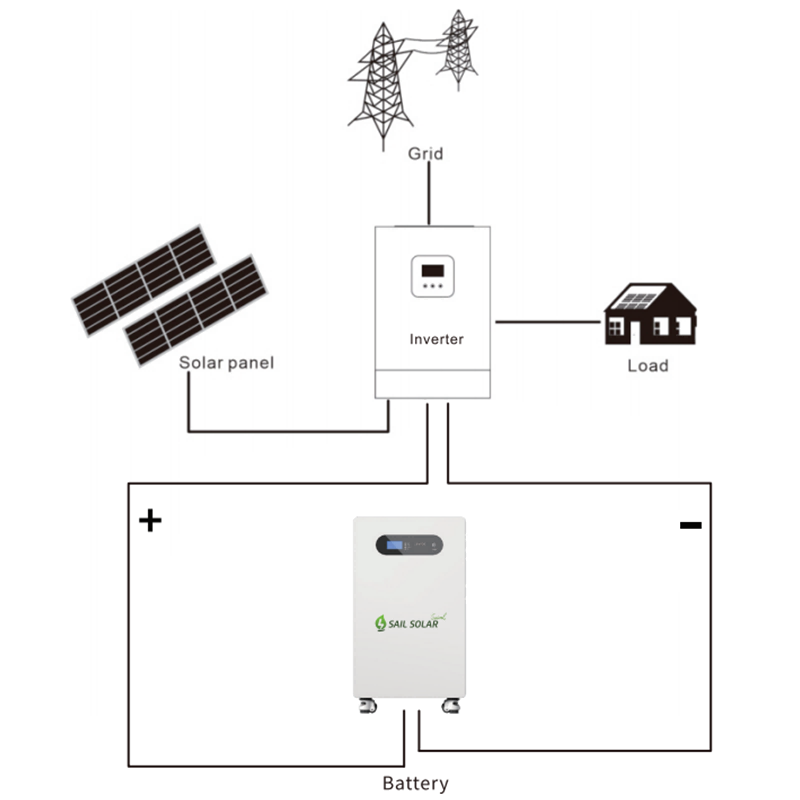

The working principle of the residential LiFePO₄ battery energy storage system is as follows:
When the main power supply is normal, the inverter operates normally, supplying power to household loads (as shown in the figure) while simultaneously charging the battery pack.
When both utility power and photovoltaic power are unavailable, the battery pack provides uninterrupted power to the inverter, ensuring normal operation of household electricity.
When power is restored, the battery pack resumes charging while household loads are powered again.
--------------占位---------------
on Google API big data integrates all website data
|

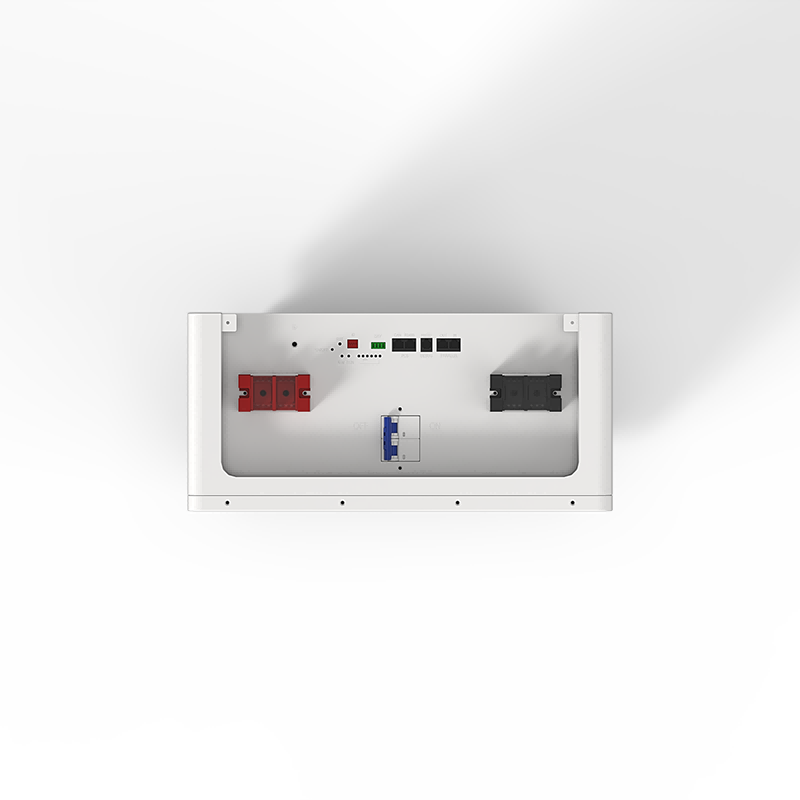

1.Negative Terminal |
9. RS485/CAN |
| 2. DIP Switch | 10. RS232 |
| 3. Dry Contact | 11. Parallel |
|
4. Ari Switch |
12. Ground Wire |
| 5. Positive Terminal | 13. Switch |
| 6. Status Lamp | 14. LCD Touch Screen Dispaly |
| 7. RUN/ALM | 15. RST Button |
| 8. SOC |
--------------占位---------------
Advantages:
1. Intelligent Management System：
- Controls charging, discharging, floating charging, and hibernation
- Multi-level protection for voltage, current, and temperature
2. Comprehensive Monitoring：
- Tracks voltage, current, temperature, capacity, and working status
3. Remote Control Compliance：
- Smart design meets national standards for telemetry, remote signaling, remote control, and remote adjustment
4. Balance & Longevity：
- Built-in intelligent balance module ensures capacity consistency and extends service life
5. User Interface
- Control panel with status display and alarm devices for easy visual monitoring
6. Thermal Management：
- Self-contained intelligent thermal management enables operation across a wide temperature range
