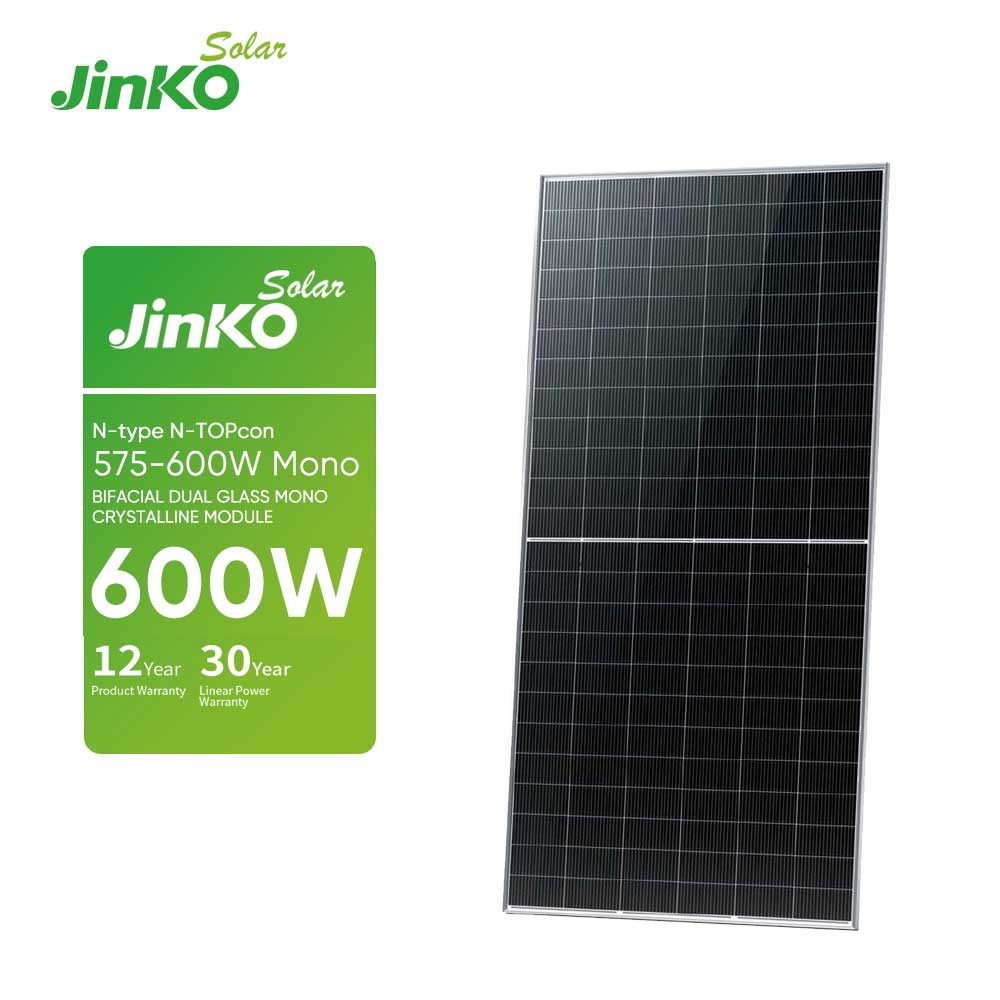

Utilizing cutting-edge solar technology, the JinkoSolar Tiger Neo 590W bifacial double-glass solar panel, Up to 20% power gain depending on albedo and PV system design, is designed to maximize energy output, durability, and long-term performance for utility-scale projects, commercial facilities, Residential and demanding environments.
Marque :
JinkoPlage de puissance :
575-600WDimensions du module :
2278×1134×30 mmLester :
31.0kgVerre :
Double GlassCadre: :
Anodized Aluminium AlloyBoîte de dérivation: :
IP68 RatedCâble :
4.0mm2 (+): 400mm , (-): 200mm or Customized LengthMax. Efficacité :
22.84%Charge de vent/neige :
1000W/m2Nombre de cellules :
144 (2×72)Connecteur :
Wooden Box
-Ultra-High Efficiency & Bifacial Power Generation
590W Output: Advanced N-type TOPCon cell technology delivers exceptional conversion efficiency, ensuring superior energy yields even in limited space.
Bifacial Design: Captures sunlight on both sides, generating up to 20%+ additional energy from reflected light (rear-side gain varies by installation conditions)
-Robust Double Glass Construction
Durability: Frameless design with 2mm tempered glass on both sides enhances mechanical strength, resistance to PID (Potential Induced Degradation), and corrosion.
Weatherproof: IP68-rated, withstands extreme temperatures (-40°C to +85°C), heavy snow loads (up to 6,000Pa), and wind loads (4,000Pa).
-Lower Degradation & Extended Lifespan
Low Temperature Coefficient: -0.29%/°C minimizes efficiency loss in high-heat environments.
Enhanced Longevity: N-type cells and double-glass encapsulation reduce annual degradation to just ~0.4%, ensuring over 30 years of reliable performance.
-Smart Compatibility & Sustainability
Versatile Installation: Compatible with trackers and fixed-tilt systems, ideal for roof-mounted solar Residential rooftops.
Eco-Friendly: Lead-free, low-carbon footprint manufacturing aligns with global sustainability goals.
Why Choose Jinko Solar?
As a global leader in solar innovation, Jinko Solar combines industry-leading R&D with proven quality control. The Tiger Neo 590W bifacial module empowers businesses to achieve higher ROI through unmatched energy density, reduced LCOE (Levelized Cost of Energy), and future-proof performance.
Ideal For:
Commercial and Residential rooftops
Projects requiring high-wattage, space-efficient solutions
Bifacial：JKM590N-72HL4-BDV
Product Parameters(STC)
| Module Type | JKM580N-72HL4-BDV | JKM585N-72HL4-BDV | JKM590N-72HL4-BDV | JKM595N-72HL4-BDV | JKM600N-72HL4-BDV |
| Maximum Power (Pmax) | 580Wp | 585Wp | 590Wp | 595Wp | 600Wp |
| Maximum Power Voltage (Vmp) | 43.88V | 44.02V | 44.17V | 44.31V | 44.45V |
| Maximum Power Current (Imp) | 13.22A | 13.29A | 13.36A | 13.43A | 13.50A |
| Open-circuit Voltage (Voc) | 52.50V | 52.70V | 52.90V | 53.10V | 53.30V |
| Short-circuit Current (Isc) | 13.95A | 14.01A | 14.07A | 14.13A | 14.19A |
| Module Efficiency STC (%) | 22.45% | 22.65% | 22.84% | 23.03% | 23.23% |
AUTHORIZATION
Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
