Max. PV power (kW): 330/412.5
MPPT voltage range (V): 250-1000V
Battery voltage range (V): 420-950V
Dimension W*D*H (mm):
600 × 720 × 2050*1+1200*800*2050

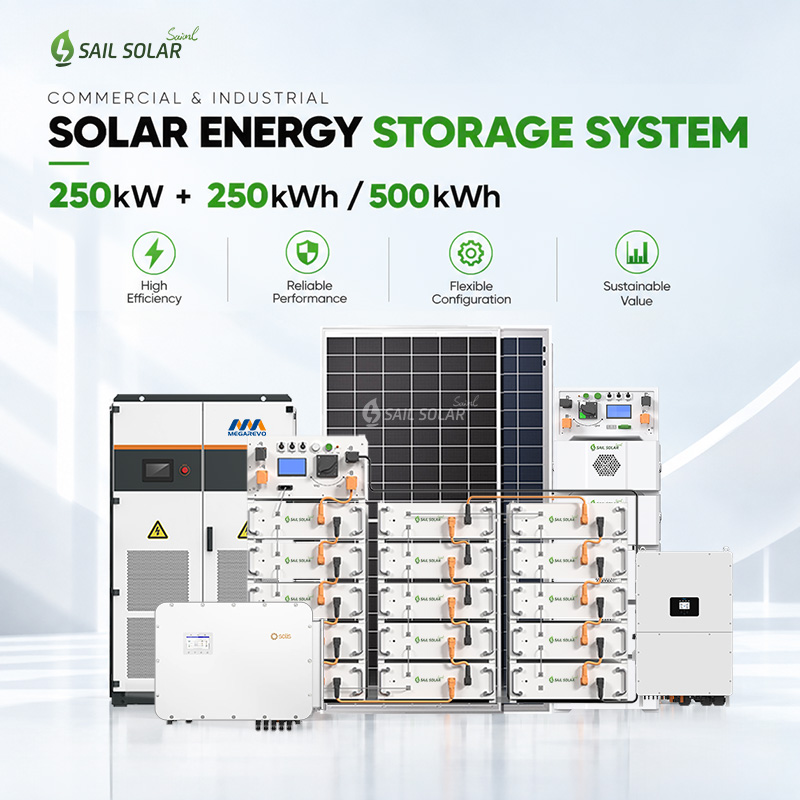

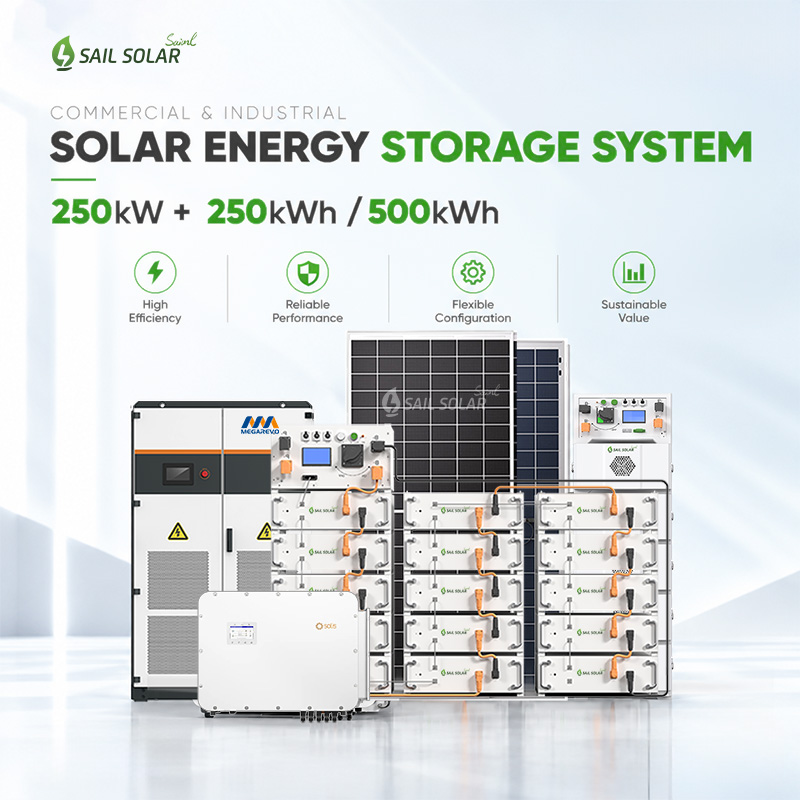

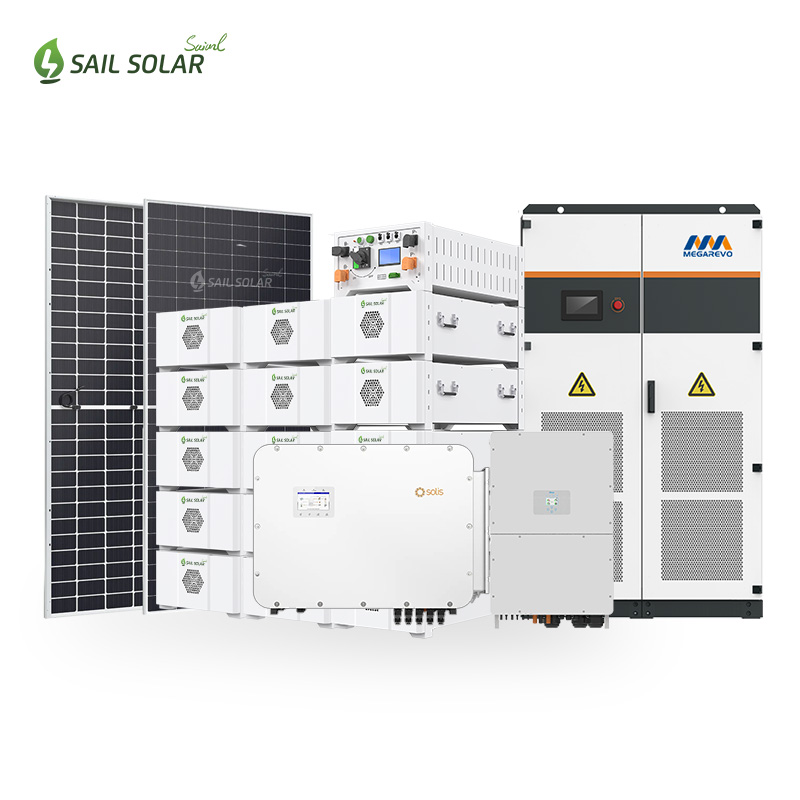

Sail Solar 250kW hybrid solar energy storage system is built for factories and commercial use, with optional 250kWh or 500kWh LiFePO4 battery. It uses smart EMS for peak shaving to cut high peak electricity bills. When the grid works, solar power feeds your factory loads first; extra power charges the battery. If the grid goes down, it automatically switches to backup mode to keep your critical production equipment running.The full package includes solar panels, hybrid inverter, battery cabinet, switchgear and remote monitoring. Available for rooftop or ground mounting, CE/IEC/TUV certified.
Marque :
Sail SolarPuissance du système :
250kwType de système :
Hybrid/off-gridType de panneau solaire :
N-typeType d'installation :
Rooftop/GroundPersonnalisation :
CustomizedApplication :
Factory/CommercialCertificat :

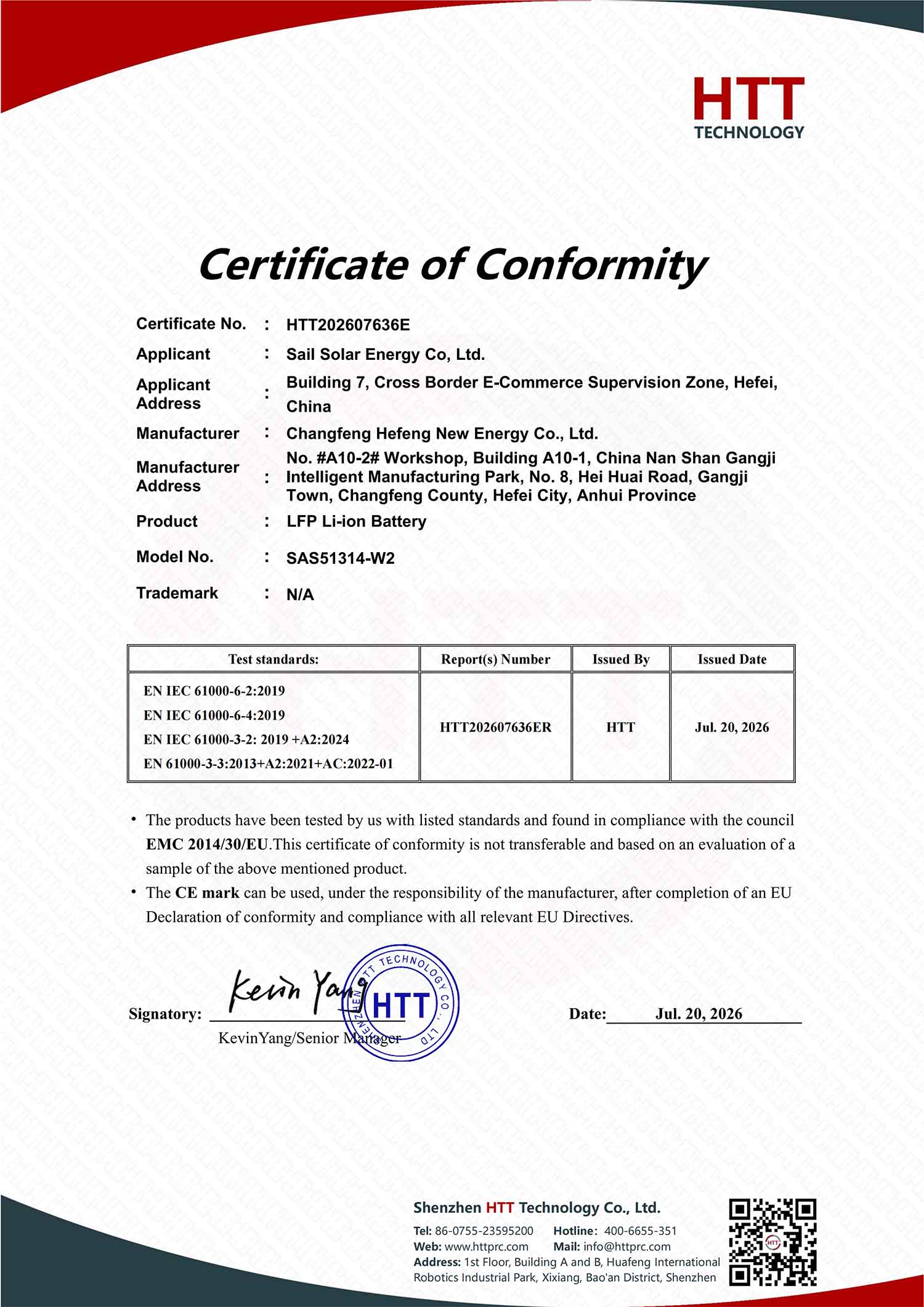

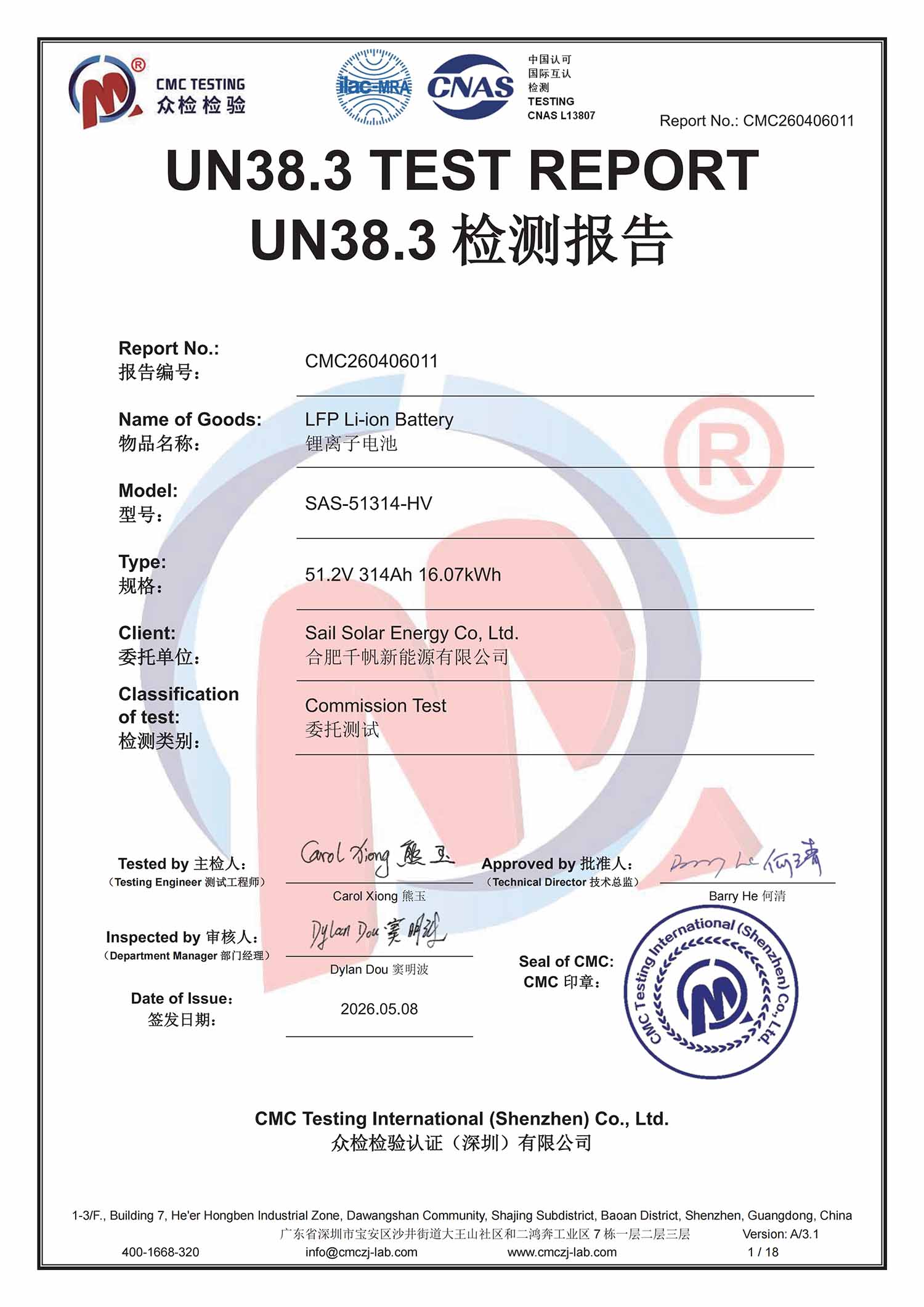

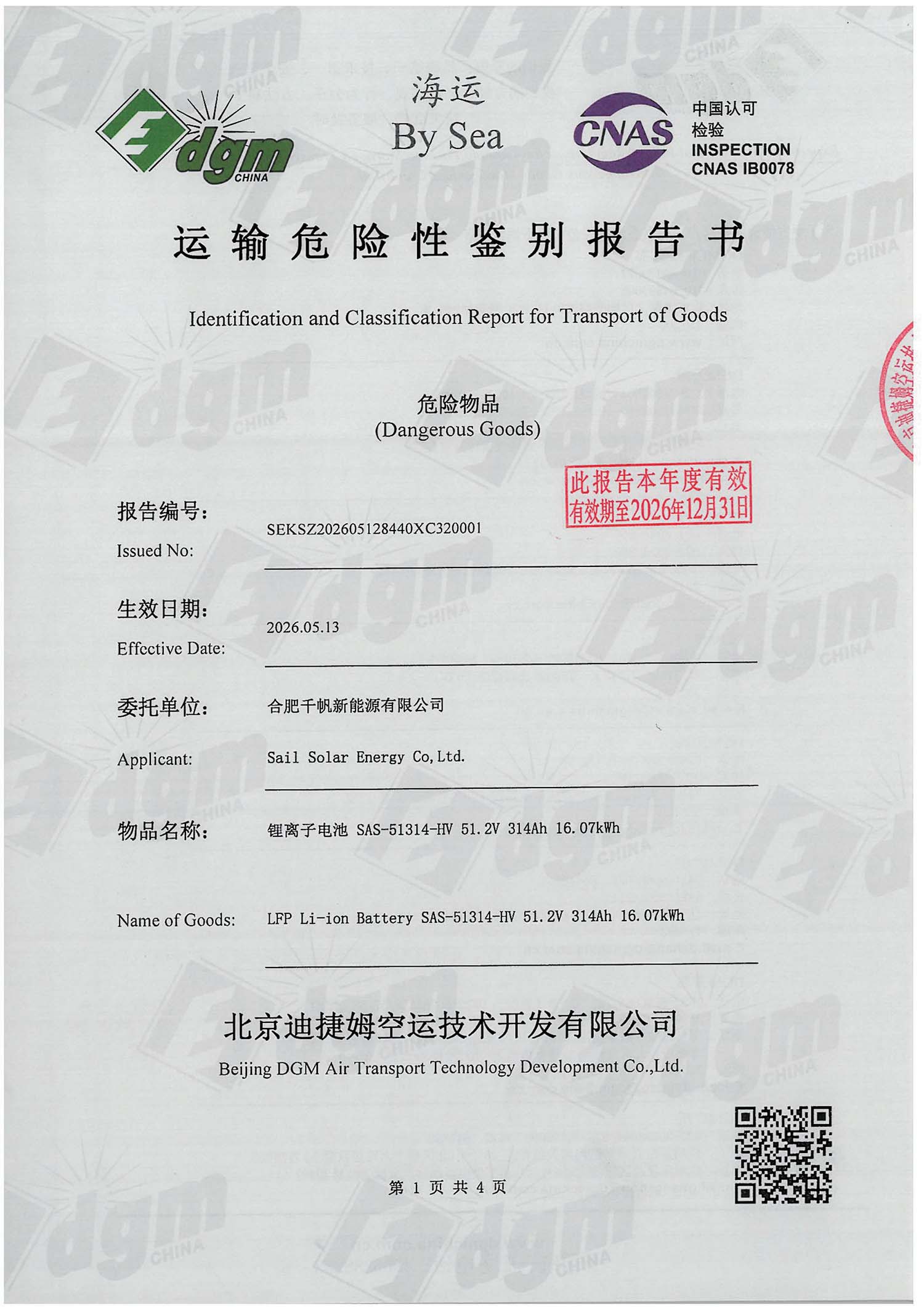

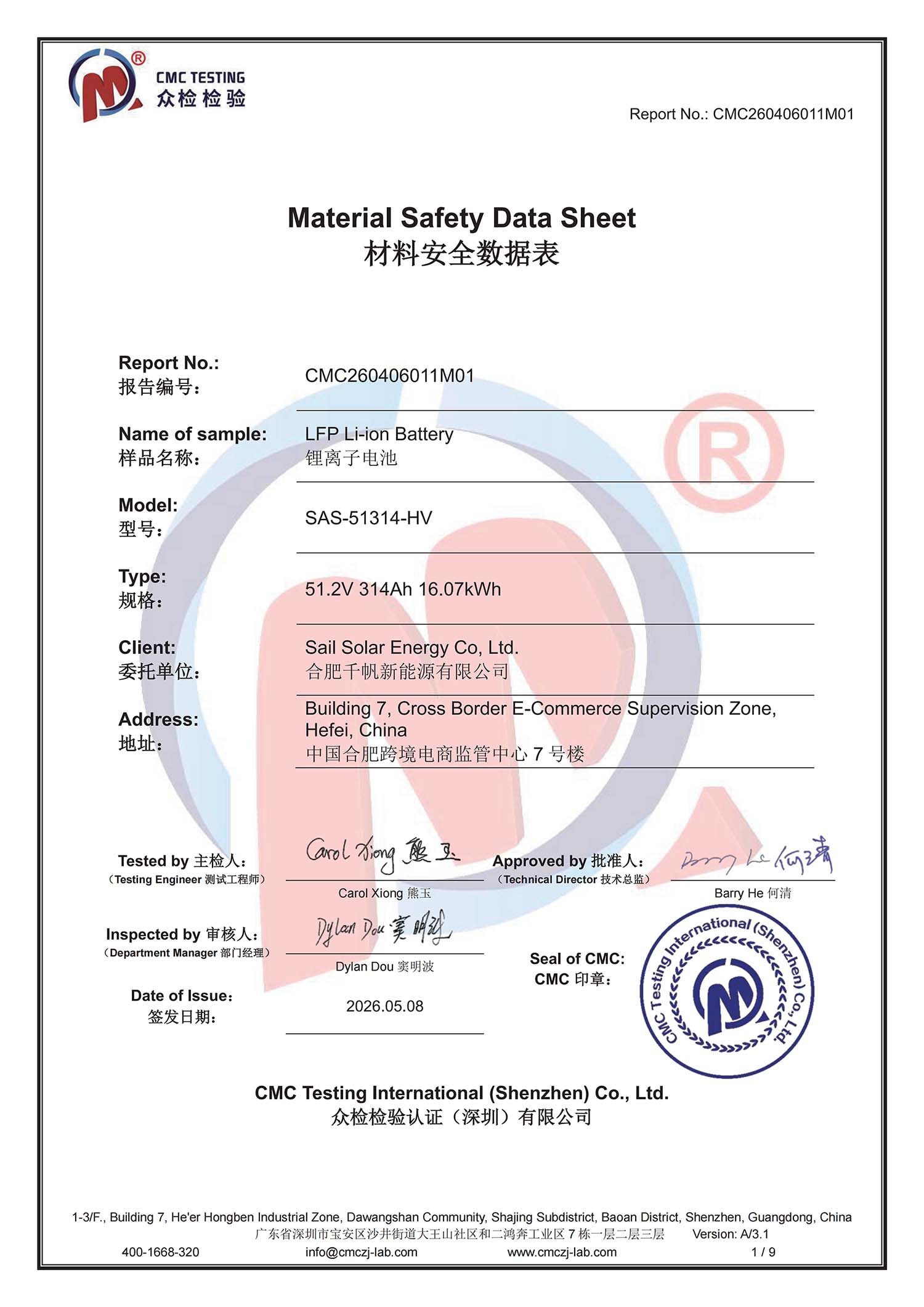

CE/IEC/UN38.3/MSDS/By seaOEM :
SupportSail Solar 250kw Energy Storage System
Typical Configuration for Your Reference
|
Model |
SAS-250KW-PVESS |
| 640w Solar Panel | 390-580 pieces |

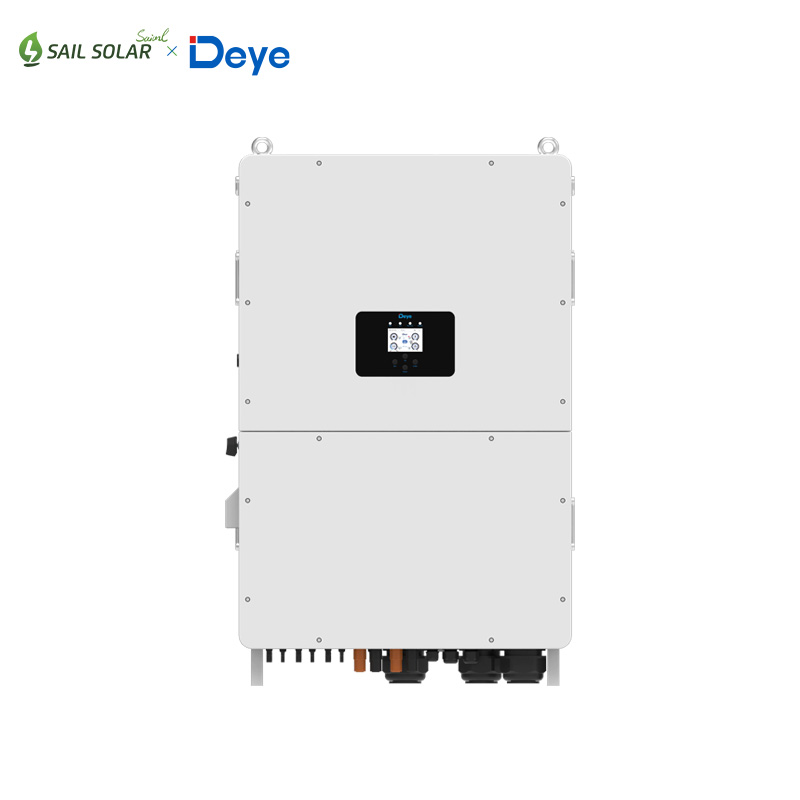

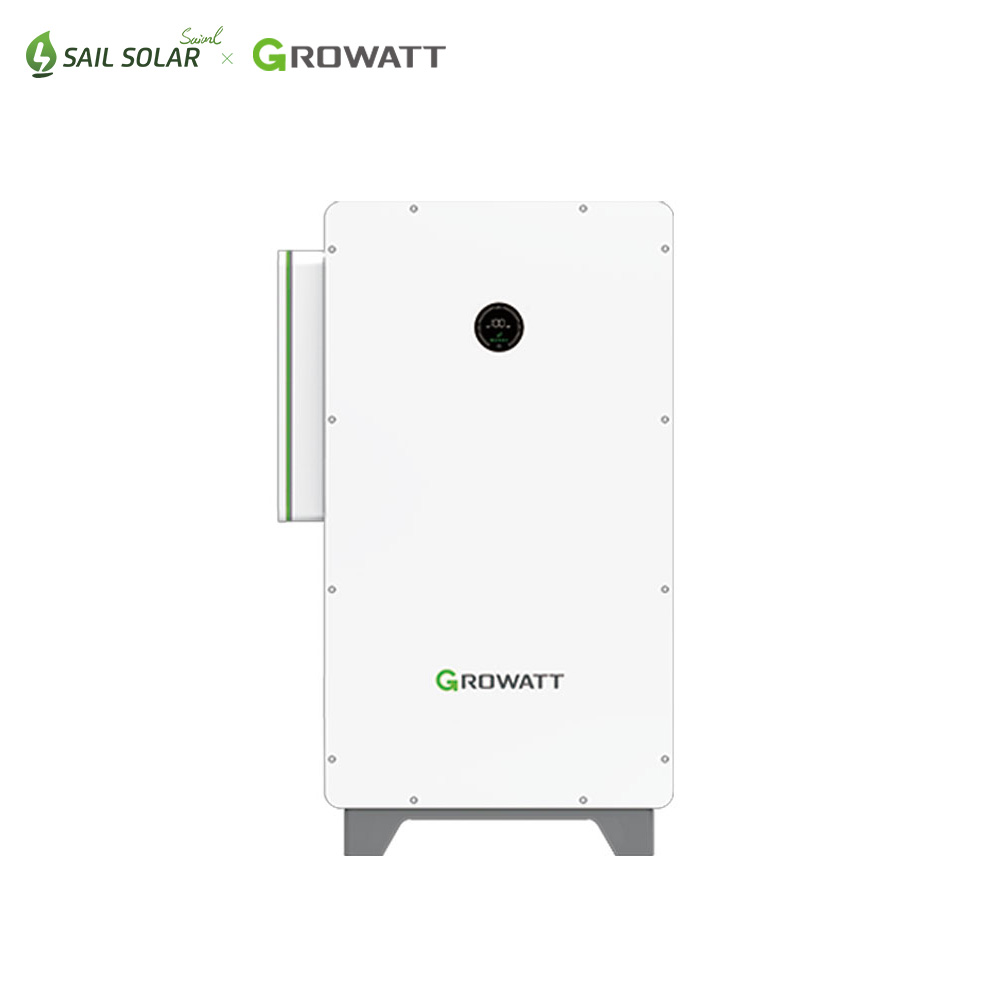

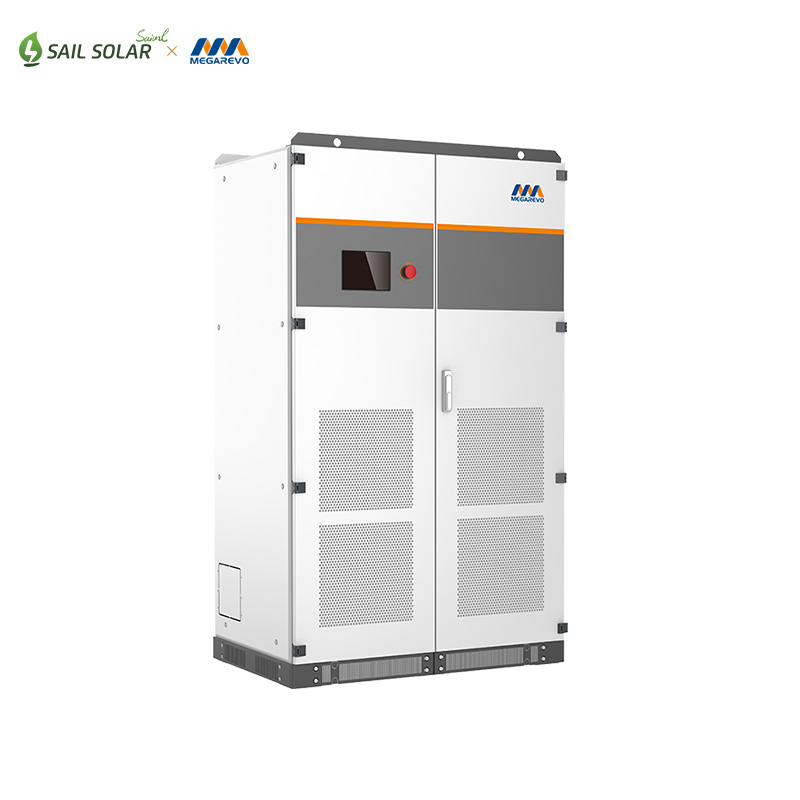

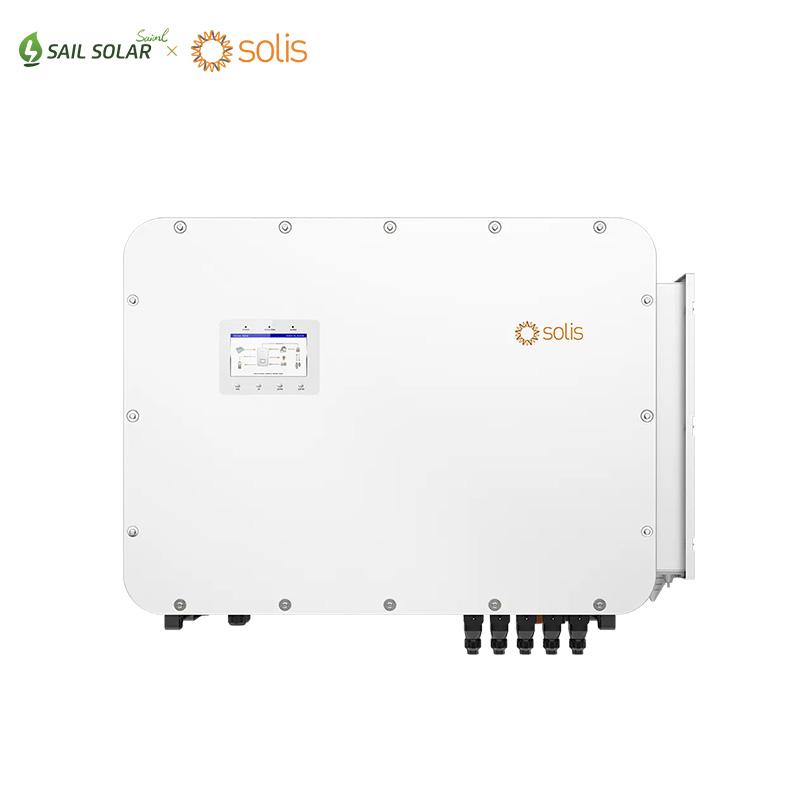

| Hybrid Inverter | Mege 250kw hybrid inverter / Deye 125kw hybrid inverter*2 / Solis 125kw hybrid inverter*2 / Growatt 125kw hybrid inverter*2 |
| Lithium Battery | Option 1 (1c): 250kwh lithium battery cluster / Option 2 (0.5c): 500kwh lithium battery cluster |
| PV Cable 4mm2 | 3000-4000 meters |
| MC4 Connector | 200 pairs |
| Mounting System | Customized for rooftop or ground |
| Optional Accessories |
Lightning protection?grounding device |
System is customized products, the above is for reference only.
-----------占位---------------
✅ Hybrid inverter, support grid-tie & island emergency backup
✅ EMS energy management for peak shaving & load shifting
✅ Pre-designed full BOM: PV panels, hybrid inverter, LiFePO4 battery, combiner box, mounting
✅ Seamless switch when power outage, protect critical loads
✅ Custom battery capacity & backup duration
✅ CE/IEC/TUV certified, support different country grid standard
✅ Remote cloud monitoring & 24/7 system data log
--------------占位---------------

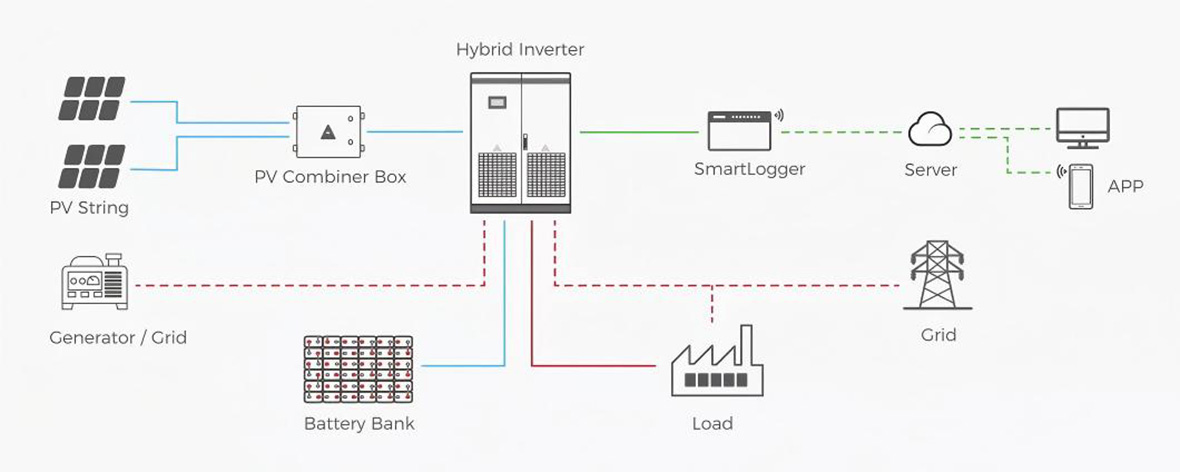

How Hybrid Works
Solar panels (PV String) capture sunlight and produce DC electricity. The power goes through the PV Combiner Box for circuit protection and collection, then flows into the **Hybrid Inverter**, the core controller of the whole system.
The hybrid inverter converts DC solar power into usable AC power to supply your factory loads. It manages charging and discharging for the Battery Bank (250kWh / 500kWh LiFePO4 optional).
A SmartLogger collects all real-time operation data. Through the cloud server, you can monitor power output, battery level and system status remotely via PC or mobile APP.
--------------占位---------------
--------------占位---------------
People May Ask
Q1: Can this hybrid system work without battery?
A1: It can run as grid-tied PV without battery, but you will lose peak shaving and power outage backup functions. The battery bank is required for emergency backup and peak shaving.
Q2: Is a diesel generator mandatory for this 250kW hybrid system?
A2: Not mandatory. Generator is optional. It acts as an extra backup for long-duration outages when PV and battery are not enough.
Q3:How long can the battery support my critical loads during a blackout?
A3: Backup duration depends on your critical load power and selected battery capacity. 250kWh or 500kWh battery options are available for different backup time requirements. We can calculate for you based on your load list.
